Flashing BTT Manta M8P CAN and EBB42 with Klipper using Katapult

About

For my own purposes, this is a quick and dirty guide on how to flash the BTT Manta M8P CAN and the EBB42 board with Klipper firmware using Katapult. This process should work for other BTT Manta M8P and EBB versions too, but you have to adjust the configuration accordingly.

USB or CAN Bus

The BTT Manta M8P CAN board can be flashed and used with Klipper firmware via two different methods: USB connection or CAN Bus. If you are using toolhead boards like the EBB36 or EBB42 that support CAN Bus, it is mandatory to use the CAN Bus method for communication between the mainboard and toolhead boards. If you are using toolhead boards that support USB connection (like the BTT SB2209 USB or the EBB36/42 v2.0), use USB connection instead.

In general, CAN Bus is the preferred method for communication between multiple boards in a 3D printer setup, as it provides better reliability and performance compared to USB connections.

Prerequisites

A working Klipper installation on a host system (Raspberry Pi, etc.). Follow the Klipper Installation Guide if you haven’t done this yet.
Basic knowledge of using the terminal/command line.
Installed dfu-util on your host system. You can install it via your package manager. For example, on Debian/Ubuntu-based systems, you can run:
```
sudo apt-get install dfu-util python3-serial
```
A USB cable to connect the BTT Manta M8P board to your host system for flashing Katapult and Klipper firmware.
A CAN Bus connection between the BTT Manta M8P board and the BTT EBB42 board for communication.

Configured CAN Bus on Host System

There a many ways to setup CAN Bus on your host system. I recommend to use systemd-networkd for this. Here is a quick example:

Add the following file /etc/systemd/network/80-can.link:

[Match]
Type=can

[Link]
TransmitQueueLength=128

and the following file /etc/systemd/network/80-can.network:

[Match]
Name=can0

[CAN]
BitRate=1000000

Run the following commands to load this configuration:

sudo systemctl daemon-reload
sudo systemctl restart systemd-networkd

My Artillery Sidewinder X2 Setup

I replaced the original Artillery Mainboard with a BTT Manta M8P v1.1 board running in CAN Mode.
I replaced the original Artillery Toolhead board with a BTT EBB42 v1.2 board running in CAN Mode.

Flashing the BTT Manta M8P v1.1 in CAN Mode with Katapult

Flash katapult to the BTT Manta M8P v1.1

This step is only necessary if you have a brand new BTT Manta M8P board without Katapult installed. If you already have Katapult installed, you can skip this step.

Download Katapult.

cd ~
git clone https://github.com/Arksine/katapult
cd katapult

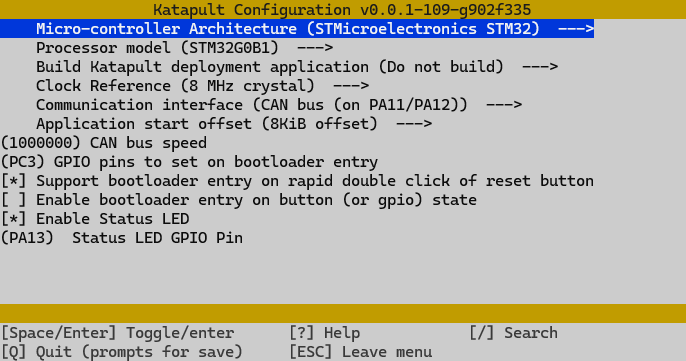

Configure Katapult for the BTT Manta M8P v1.1 CAN:
```
make menuconfig
```
Be aware that I have also enabled the PC3 GPIO Pin. If you have connected a device like the BTT Relay V1.2 to the PS-ON GPIO Pin the power supply is switched via this pin.
Save and exit with Quit and Yes.
Build the firmware-bootloader package:
```
make -j
```

Flash Katapult

dfu-util -R -a 0 -s 0x08000000:mass-erase:force -D ~/katapult/out/katapult.bin

Reset the board (or power off/on). Katapult should now be installed, the status LED will blink.

Flash Klipper to the BTT Manta M8P v1.1 in CAN Mode

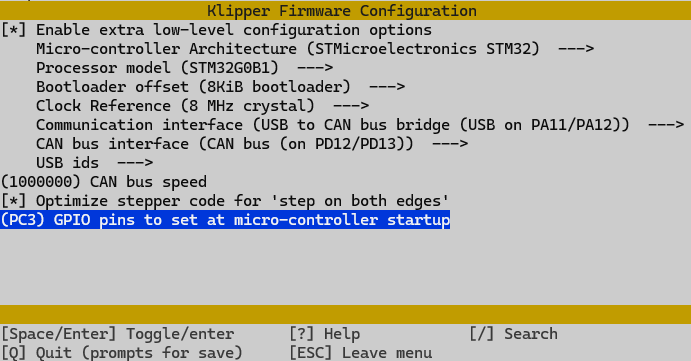

Configure Klipper Firmware for the BTT Manta M8P v1.1 CAN:
```
cd ~
cd klipper
make menuconfig
```
Be aware that I have also enabled the PC3 GPIO Pin. If you have connected a device like the BTT Relay V1.2 to the PS-ON GPIO Pin the power supply is switched via this pin.
Save and exit with Quit and Yes.
Build the Klipper firmware:
```
make -j
```
Stop Klipper service first:
```
sudo service klipper stop
```
Flash Klipper
1. Depending if Klipper is already running (update workflow) on the board, you need to switch into bootloader mode first. Run the following command to do so:
```
~/klippy-env/bin/python ~/katapult/scripts/flashtool.py -i can0 -u <CANBUS-UUID> -r
```
  Replace <CANBUS-UUID> with the actual CANBUS-UUID of your board. (Configured in printer.cfg under [mcu] section as canbus_uuid)
2. Now the should get something similar to this:
```
Canbus Bridge detected at /sys/bus/usb/devices/1-1.4
Connecting to CAN UUID 4a0cb5640a86 on interface can0
Sending bootloader jump command...
Waiting for USB Reconnect...done
Detected new USB Device: 1d50:6177 katapult stm32g0b1xx
Katapult detected at serial port /dev/ttyACM0
Bootloader Request Complete
```
  Your board is now in bootloader mode. You can connect to it via the serial port /dev/ttyACM0.
3. Finally, flash the Klipper firmware:
```
cd ~/klipper
make flash FLASH_DEVICE=/dev/ttyACM0
```
  This should quit with an CAN Flash Success message.
Restart Klipper to apply the changes.
```
sudo service klipper restart
```

Flashing the BTT EBB42 v1.2 in CAN Mode with Katapult

Flash katapult to the BTT EBB42 v1.2 CAN

This step is only necessary if you have a brand new BTT EBB42 board without Katapult installed. If you already have Katapult installed, you can skip this step.

Connect your EBB42 via USB and Flash Katapult.
1. Power off your printer
2. Unplug the CAN Bus cable from the EBB42 board to avoid any power issues.
3. Temporarily bridge the 5V Jumper on the EBB42 board to power it via USB.
4. Put the board into DFU mode by holding the BOOT button while plugging in the USB cable. Or as an alternative, press and hold the BOOT button, press reset, release reset, then release BOOT.
5. The board should now be in DFU mode and ready to be flashed.

If needed, download Katapult.

cd ~
git clone https://github.com/Arksine/katapult
cd katapult

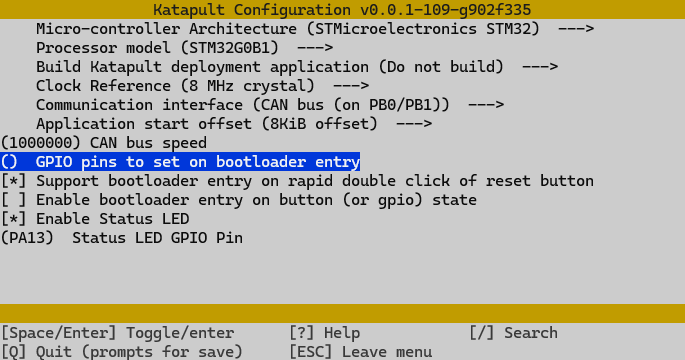

Configure Katapult for the BTT Manta M8P v1.1 CAN:
```
cd ~/katapult
make menuconfig
```
Save and exit with Quit and Yes.
Build the firmware-bootloader package:
```
make -j
```

Flash Katapult:

sudo dfu-util -R -a 0 -s 0x08000000:mass-erase:force -D ~/katapult/out/katapult.bin

This should finish with a File downloaded successfully message.

Remove 5V Power Jumper, remove your usb cable and power off your printer. Add your CAN Bus cable to the EBB42 board, then power on. Katapult should now be installed.

Flash Klipper to the BTT EBB42 v1.2 CAN

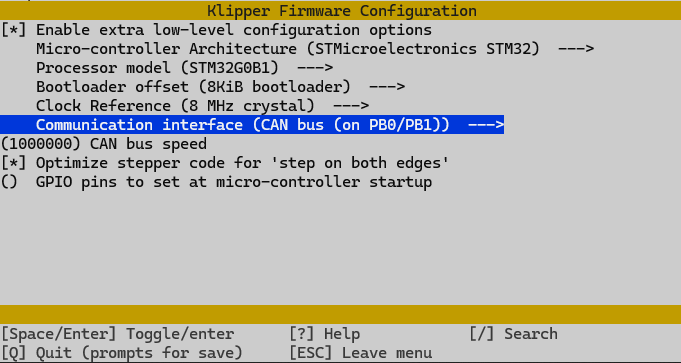

Configure Klipper Firmware for the BTT EBB42 v1.2 CAN CAN:
```
cd ~
cd klipper
make menuconfig
```
Save and exit with Quit and Yes.
Build the Klipper firmware:
```
make -j
```
Stop Klipper service first:
```
sudo service klipper stop
```
Query the CAN Bus UUID of the EBB42 board:
```
~/klippy-env/bin/python ~/klipper/scripts/canbus_query.py can0
```
You should get something like this: Found canbus_uuid=c239709a91c7, Application: CanBoot
Make a note of the CAN UUID, it should be the uuid of the your EBB42 board. Note it for the next step.

Flash Klipper to EBB42

~/klippy-env/bin/python3 ~/katapult/scripts/flash_can.py -i can0 <CANBUS_UUID> -f ~/klipper/out/klipper.bin -u

Replace <CANBUS-UUID> with the actual CANBUS-UUID of your board. (Noted from the last step or configured in printer.cfg under [mcu ebb42] section as canbus_uuid)

This should result in something like this:

Verifying canbus connection
Flashing '/home/freaky/klipper/out/klipper.bin'...

[##################################################]

Write complete: 21 pages
Verifying (block count = 649)...

[##################################################]

Verification Complete: SHA = 0CD35886C377A91B5AB0E0AD44684CB24DEBE05E
Programming Complete

If you get any errors, and you double checked your CANBUS UUID, try to reset the EBB42 board by power cycling your printer and try again. If this not work, begin again from flashing Katapult to the EBB42 board.

Restart Klipper to apply the changes.
```
sudo service klipper restart
```

My Voron 2.4 Setup

Mainboard: BTT Manta M8P v2.0 (USB Mode)
Toolhead board: BTT EBB SB2209 v1.10 USB

Flashing the BTT EBB SB2209 USB

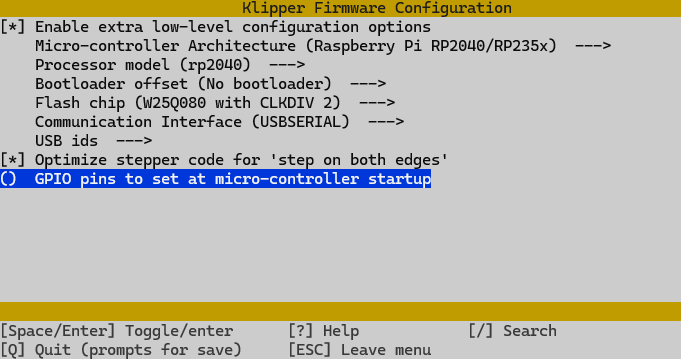

Configure Klipper Firmware for the BTT EBB SB2209 USB:
```
cd ~
cd klipper
make menuconfig
```
Save and exit with Quit and Yes.
Build the Klipper firmware:
```
make -j
```
Stop Klipper service first:
```
sudo service klipper stop
```

Flash Klipper

cd ~/klipper
make flash FLASH_DEVICE=2e8a:0003

This should result in something like this:

Flashing out/klipper.uf2 to 2e8a:0003
sudo lib/rp2040_flash/rp2040_flash out/klipper.uf2

Loaded UF2 image with 166 pages
Found rp2040 device on USB bus 1 address 9
Flashing...
Resetting interface
Locking
Exiting XIP mode
Erasing
Flashing
Rebooting device

Restart Klipper to apply the changes.
```
sudo service klipper restart
```

Flashing the BTT Manta M8P v2.0 in USB Mode

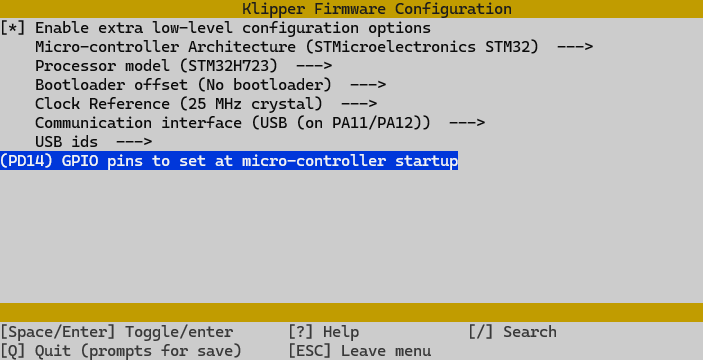

Configure Klipper Firmware for the BTT Manta M8P v2.0 USB:
```
cd ~
cd klipper
make menuconfig
```
Be aware that I have also enabled the PD14 GPIO Pin. If you have connected a device like the BTT Relay V1.2 to the PS-ON GPIO Pin the power supply is switched via this pin.
Save and exit with Quit and Yes.
Build the Klipper firmware:
```
make -j
```
Stop Klipper service first:
```
sudo service klipper stop
```
Flash Klipper
If you doing that initially, you need to put the board into bootloader mode first. To do so, hold the BOOT button while plugging in the USB cable. Or as an alternative, press and hold the BOOT button, press reset, release reset, then release BOOT.
After that, you can flash the firmware:
```
sudo dfu-util -R -a 0 -s 0x08000000:mass-erase:force -D ~/klipper/out/klipper.bin
```
If this results in an error you probably have Klipper already running on the board.
In this case, you can use the following command to flash the firmware. In your case the xxxxxxxxxxx part of the path may differ, so adjust it accordingly.
Determine the correct serial path by listing the devices:
```
ls /dev/serial/by-id/usb-Klipper_stm32h723xx_*
```
```
cd ~/klipper
make flash FLASH_DEVICE=/dev/serial/by-id/usb-Klipper_stm32h723xx_xxxxxxxxxxx-if00
```
This results in something like this:
```
Downloading element to address = 0x08000000, size = 41508
Erase           [=========================] 100%        41508 bytes
Erase    done.
Download        [=========================] 100%        41508 bytes
Download done.
File downloaded successfully
...
```
Ignore the errors below, you should be good to go.
Restart Klipper to apply the changes.
```
sudo service klipper restart
```
